SA 387 GR 11-22 PLATES

Name: SA 387 GR 11-22 PLATES
Brand: SHIVA ALLOYS
Price: 250 INR
Availability: InStock

250 INR/Kilograms

Get a Price/Quote

Product Details:

Hardness Max 250 HB
Tensile Strength 515-690 MPa (Varies per grade)
Recyclable Yes
Heat Resistance Yes
Material Composition % Cr 1.00-1.50% (Gr 11), 2.00-2.50% (Gr 22); Mo 0.45-0.65% (Gr 11), 0.87-1.13% (Gr 22)
Coating Type Uncoated / Custom on request
Corrosion Resistant Yes, against oxidation and sulfidation
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SA 387 GR 11-22 PLATES Price And Quantity

Minimum Order Quantity 100 Kilograms
Price 250 INR/Kilograms

SA 387 GR 11-22 PLATES Product Specifications

Material Composition % Cr 1.00-1.50% (Gr 11), 2.00-2.50% (Gr 22); Mo 0.45-0.65% (Gr 11), 0.87-1.13% (Gr 22)
Coating Type Uncoated / Custom on request
Product Name SA 387 GR 11-22 Plates
Heat Resistance Yes
Recyclable Yes
Thickness 6 mm to 100 mm or as required
Shape Rectangular Plate
Weight Variable as per plate dimensions
Dimension (L*W*H) As per order or standard sizes (customizable)
Product Form Flat Plate
Size Customizable as per client requirements
Material Grade Grade 11 / Grade 22
Application Pressure vessels, Boilers, Heat exchangers, Industrial machinery, Power plants
Corrosion Resistant Yes, against oxidation and sulfidation
Surface Hot Rolled / Mill Finish
Usage Construction of pressure vessels and boilers operating at elevated temperatures
Color Grey
Composition Chromium, Molybdenum, Carbon, Manganese, Silicon, Phosphorus, Sulfur
Grade SA 387 Grade 11 / Grade 22
Steel Standard ASTM A387 / ASME SA387
Tensile Strength 515-690 MPa (Varies per grade)
Hardness Max 250 HB
Steel Product Type Plates
Finish Type Hot Rolled
Steel Type Alloy Steel

Packing Standard export packing / as per requirement
Delivery Condition Normalized / Quenched & Tempered
Test Certificates EN 10204 3.1 / 3.2 as per requirement
Elongation 19% min in 200 mm
Edge Type Cut Edge / Mill Edge
Processing Service Cutting, Bending, Welding, Drilling
Yield Strength Minimum 275 MPa
Conformance Certified by national & international standards

SA 387 GR 11-22 PLATES Trade Information

Supply Ability 100000 Kilograms Per Month
Delivery Time 3 Days

Product Description

Discover the acclaimed SA 387 GR 11-22 Plates, preeminent for their imposing performance under high pressure and temperature. These trending alloy steel plates are famed for exceptional yield strength (minimum 275 MPa) and enduring elongation (19% min in 200 mm). Instantly checkout our featured product, available with EN 10204 3.1/3.2 test certificates, and certified to national and international standards. Choose from cut edge or mill edge, with professional processing-cutting, bending, welding, drilling-to fit custom dimensions. Suited for pressure vessels, boilers, heat exchangers, and industrial machinery, these plates ensure reliability where it matters most.

Superior Engineering for Demanding Applications

SA 387 GR 11-22 Plates offer a durable hot-rolled surface with outstanding corrosion and heat resistance-perfect for pressure vessels, boilers, and power plants. With a reputation built on reliability, these imposing alloy steel plates are commonly used by preeminent manufacturers and EPC contractors for constructing equipment that must withstand extreme operating conditions. Their versatility extends across industrial machinery and heat exchangers. Their robust finish and renowned performance make them an industry favorite.

Rapid Supply and Certified Assurance

Our SA 387 GR 11-22 Plates come with express shipping options for urgent project needs across India, ensuring swift handover and minimal downtime. Offered at a competitive list price, each batch is delivered with full certification-EN 10204 3.1/3.2-meeting ASTM/ASME standards for complete traceability. Our extensive supply ability allows us to fulfill both bulk and custom orders for major domestic markets, giving every client confidence in on-time delivery and product authenticity.

FAQ's of SA 387 GR 11-22 PLATES:

Q: How is the SA 387 GR 11-22 Plate processed to meet custom requirements?

A: Each SA 387 GR 11-22 Plate can be cut, bent, welded, or drilled according to individual project specifications, ensuring seamless integration and performance in complex applications.

Q: What are the main benefits of using SA 387 GR 11-22 Plates for high-temperature environments?

A: These plates provide excellent heat resistance and corrosion resistance, particularly effective against oxidation and sulfidation. Their robust yield and tensile strengths make them highly reliable for pressure vessels and industrial machinery operating at elevated temperatures.

Q: When can I expect delivery after placing an order for these alloy steel plates?

A: Express shipping and rapid dispatch options are available, with customizable delivery schedules to accommodate urgent requirements across major Indian cities and industrial hubs.

Q: Where are SA 387 GR 11-22 Plates primarily used?

A: They are primarily employed in the fabrication of pressure vessels, boilers, heat exchangers, and various industrial machinery, especially in sectors like power generation, chemical processing, and refineries.

Q: What certifications do SA 387 GR 11-22 Plates carry?

A: Every plate comes with EN 10204 3.1 or 3.2 test certificates, as per client requirements, and is in full conformance with ASTM A387/ASME SA387 and additional national and international standards.

Q: How does the surface finish of these plates support demanding applications?

A: The hot-rolled, mill finish imparts superior durability and resistance to wear, making these plates ideal for rigorous service conditions in high-pressure and high-temperature industrial settings.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'PLATE & SHEET' category

Tiscral plate Price : 250 INR/Kilograms Minimum Order Quantity : 100 Corrosion Resistant : Moderate Application : Other, Used in mining, construction, cement, and earthmoving equipment for wearresistant surfaces Surface : Shot blasted, mill finish Size : Standard and customized sizes available Material Grade : Tiscral Dimension (L*W*H) : Customized as per requirement Product Form : Plate Weight : Depends on size and thickness Heat Resistance : Yes Shape : Other, Rectangular / Plate Thickness : 6 mm to 60 mm Recyclable : Yes Product Name : Other, Tiscral Plate Material Composition % : Typical: Carbon 0.210.25%, Manganese 1.32.0%, Chromium 0.51.0%, Silicon, Nickel, Others Finish Type : Mill / Shot blasted finish Steel Type : Alloy Steel Hardness : 360500 BHN (Brinell Hardness Number) Steel Product Type : Other, Wear Resistant Plate Steel Standard : Other, IS 2062, ASTM, EN standards (as per order) Tensile Strength : Up to 1600 MPa Grade : Tiscral (Proprietary Hardox equivalent) Composition : Alloy steel with chromium, nickel, and other alloying elements Usage : Fabrication of buckets, liners, chutes, crushers, and hoppers Color : Grey / Metallic Coating Type : Uncoated / As per requirement Diameter : Not applicable (plate product)

Send Inquiry

C45 PLATE Price : 250 INR/Kilograms Minimum Order Quantity : 100 Corrosion Resistant : No (requires additional coating for corrosion protection) Application : Other, Engineering, construction, automotive, and machinery manufacturing Surface : Mill finish / Black Size : Customized as per requirement Material Grade : C45 Dimension (L*W*H) : Custom sizes available (Typical: 2500mm x 1250mm x as per thickness) Product Form : Flat Plate Weight : Depends on size and thickness Heat Resistance : Yes Shape : Other, Rectangular Thickness : 6mm to 300mm Recyclable : Yes Product Name : Other, C45 Plate Material Composition % : C: 0.420.50, Mn: 0.500.80, Si: 0.40, S: 0.04, P: 0.04 Finish Type : Mill Finish Steel Type : Carbon Steel Hardness : 170210 HB Steel Product Type : Other, Steel Plate Steel Standard : Other, EN 100832 / DIN 17200 / JIS G4051 / ASTM A29 Tensile Strength : 570700 MPa Grade : C45 Composition : 0.420.50% C, 0.50.8% Mn, 0.04% P, 0.04% S Usage : Gear blanks, shafts, machinery parts, general engineering Color : Gray / Metallic Coating Type : Uncoated / can be provided with antirust oil Diameter : N/A (Plate product)

Send Inquiry

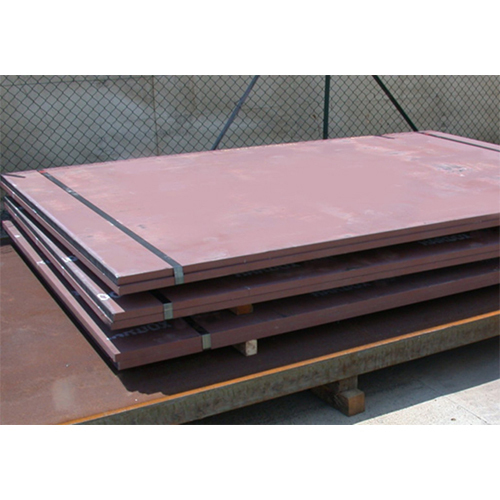

SA 516 GR 70 PLATES Price : 250 INR/Kilograms Minimum Order Quantity : 100 Corrosion Resistant : Moderate, suitable for atmospheric conditions and when painted or coated Application : Other, Boiler and Pressure Vessel, Oil & Gas Industry, Power Plant, Petrochemical, Chemical Industry, Shipbuilding Surface : Mill Finish or as specified Size : Custom sizes available; standard widths: 1500 mm, 2000 mm, 2500 mm, lengths up to 12000 mm Material Grade : SA 516 Grade 70 Dimension (L*W*H) : As per client requirement (commonly 6000mm x 2000mm or 6000mm x 2500mm, thickness as ordered) Product Form : Plate Weight : Depends on plate size and thickness Heat Resistance : Yes Shape : Other, Rectangular Plate Thickness : 3 mm to 300 mm Recyclable : Yes Product Name : Other, SA 516 GR 70 PLATES Material Composition % : Carbon: max 0.31%, Manganese: 0.791.30%, Phosphorus: max 0.035%, Sulfur: max 0.035%, Silicon: 0.130.45% Finish Type : Hot Rolled, Mill Finish Steel Type : Carbon Steel Hardness : Maximum 235 HBW (Brinell) Steel Product Type : Other, Hot Rolled Steel Plate Steel Standard : Other, ASTM A516 / ASME SA516 Tensile Strength : 485 620 MPa (7090 ksi) Grade : SA 516 Grade 70 Composition : Carbon, Manganese, Phosphorus, Sulphur, Silicon, Aluminum, Copper, Nickel, Chromium, Molybdenum, Vanadium, Titanium, Niobium Usage : Fabrication of pressure vessels, heat exchangers, boilers, storage tanks Color : Gray Coating Type : None by default; can be supplied with painted, oiled, or shot blasted surface as per order Diameter : Not applicable (plate form)
