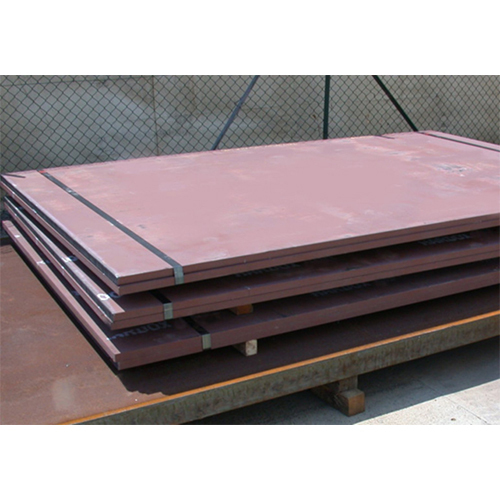

SA 516 GR 70 PLATES

Name: SA 516 GR 70 PLATES
Brand: SHIVA ALLOYS
Price: 250 INR
Availability: InStock

250 INR/Kilograms

Get a Price/Quote

Product Details:

Recyclable Yes
Material Composition % Carbon: max 0.31%, Manganese: 0.79-1.30%, Phosphorus: max 0.035%, Sulfur: max 0.035%, Silicon: 0.13-0.45%
Product Form Plate
Diameter Not applicable (plate form)
Corrosion Resistant Moderate, suitable for atmospheric conditions and when painted or coated
Coating Type None by default; can be supplied with painted, oiled, or shot blasted surface as per order
Hardness Maximum 235 HBW (Brinell)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SA 516 GR 70 PLATES Price And Quantity

Minimum Order Quantity 100 Kilograms
Price 250 INR/Kilograms

SA 516 GR 70 PLATES Product Specifications

Color Gray
Tensile Strength 485 - 620 MPa (70-90 ksi)
Surface Mill Finish or as specified
Shape Rectangular Plate
Application Boiler and Pressure Vessel, Oil & Gas Industry, Power Plant, Petrochemical, Chemical Industry, Shipbuilding
Size Custom sizes available; standard widths: 1500 mm, 2000 mm, 2500 mm, lengths up to 12000 mm
Steel Type Carbon Steel
Weight Depends on plate size and thickness
Heat Resistance Yes
Composition Carbon, Manganese, Phosphorus, Sulphur, Silicon, Aluminum, Copper, Nickel, Chromium, Molybdenum, Vanadium, Titanium, Niobium
Material Grade SA 516 Grade 70
Steel Standard ASTM A516 / ASME SA516
Corrosion Resistant Moderate, suitable for atmospheric conditions and when painted or coated
Diameter Not applicable (plate form)
Usage Fabrication of pressure vessels, heat exchangers, boilers, storage tanks
Grade SA 516 Grade 70
Product Form Plate
Hardness Maximum 235 HBW (Brinell)
Thickness 3 mm to 300 mm
Steel Product Type Hot Rolled Steel Plate
Product Name SA 516 GR 70 PLATES
Coating Type None by default; can be supplied with painted, oiled, or shot blasted surface as per order
Recyclable Yes
Material Composition % Carbon: max 0.31%, Manganese: 0.79-1.30%, Phosphorus: max 0.035%, Sulfur: max 0.035%, Silicon: 0.13-0.45%
Finish Type Hot Rolled, Mill Finish
Dimension (L*W*H) As per client requirement (commonly 6000mm x 2000mm or 6000mm x 2500mm, thickness as ordered)

Packing Standard export seaworthy packing or as specified
Delivery Condition As rolled / Normalized / Stress relieved as per client specification
Weldability Excellent, suitable for all standard welding procedures
Edge Condition Mill edge & Cut edge available
Test Certification Available, including Mill Test Certificate as per EN 10204 3.1/3.2
Yield Strength Minimum 260 MPa (38 ksi)
Third Party Inspection Offered by agencies like Lloyds, DNV, TUV, B.V. etc.

SA 516 GR 70 PLATES Trade Information

Supply Ability 100000 Kilograms Per Month
Delivery Time 3 Days

Product Description

SA 516 GR 70 PLATES are highly acclaimed for their favorable reviews and top-notch quality, making them the grandiose choice for critical industrial applications. Manufactured from premium carbon steel, these plates boast a minimum yield strength of 260 MPa (38 ksi) and a tensile strength of 485-620 MPa (70-90 ksi). Available with full test certifications, including Mill Test Certificates as per EN 10204 3.1/3.2, they are decorated with third-party approvals from Lloyds, DNV, TUV, and B.V. With excellent weldability and reduced hardness, they are suitable for fabrication in boilers and pressure vessels. Order today for reliable, customized solutions and enjoy standard export packaging, flexibility in dimensions, and prompt supply options.

Industrial Applications & Versatile Usage

SA 516 GR 70 PLATES are primarily utilized in the fabrication of boilers, pressure vessels, and heat exchangers across the boiler, oil & gas, power plants, petrochemical, and shipbuilding industries. Their robust construction and excellent weldability make them ideal for demanding conditions, ensuring safety and performance. Deco-rated with a mill finish and customizable surface treatments, these plates are a preferred choice for fabricators requiring dimensionally stable, reliable, and compliant materials for high-pressure applications.

Packaging, Supply Ability & Market Reach

Our SA 516 GR 70 PLATES are packed in standard export-worthy packaging or as per client instruction to safely withstand global freight. With a quick dispatch model and flexible supply ability, we efficiently serve bulk and customized orders. Expenditure on transportation is minimized by strategic logistics planning, ensuring cost-effectiveness. We cater widely to the Indian domestic market and support clients with reliable supply throughout major industrial zones, offering dependable deliveries and outstanding customer satisfaction.

FAQ's of SA 516 GR 70 PLATES:

Q: How can SA 516 GR 70 PLATES be used in the oil & gas industry?

A: SA 516 GR 70 PLATES are utilized in the oil & gas sector for fabricating pressure vessels, storage tanks, and heat exchangers due to their superior strength, weldability, and compliance with international standards.

Q: What certifications are available with SA 516 GR 70 PLATES?

A: Each plate comes with test certifications such as a Mill Test Certificate in accordance with EN 10204 3.1 or 3.2, and third-party inspections can be provided by agencies like Lloyds, DNV, TUV, and B.V. as required.

Q: When should I choose stress relieved or normalized delivery conditions?

A: Stress relieved or normalized conditions are chosen for applications where enhanced mechanical properties and resistance to residual stresses are critical, such as in boiler manufacturing or pressure vessel fabrication.

Q: Where can these plates be delivered and in what package?

A: SA 516 GR 70 PLATES are delivered across India and can be exported overseas. They are supplied in standard seaworthy packaging, or custom packing as specified by the client to ensure safe transit.

Q: What benefits do these plates offer in terms of weldability and fabrication?

A: SA 516 GR 70 PLATES offer excellent weldability with all standard welding procedures, allowing for easy fabrication and assembly-making them suitable for complex structures and demanding industrial applications.
