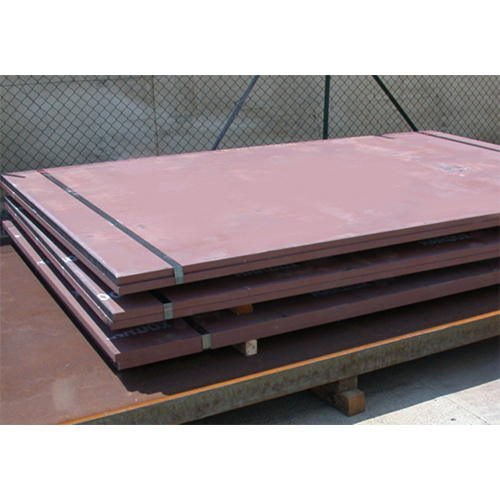

High menganese plate

Name: High menganese plate
Brand: SHIVA ALLOYS
Price: 250 INR
Availability: InStock

250 INR/Kilograms

Get a Price/Quote

Product Details:

Heat Resistance Yes
Tensile Strength 850 - 1100 MPa
Material Composition % Mn 11-14%, C 1.00-1.40%, Si 0.30-1.20%, P max 0.070%, S max 0.040%, Fe balance
Recyclable Yes
Size Customizable
Coating Type Uncoated / As rolled
Hardness 200 - 250 HB (work hardens up to 550 HB)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

High menganese plate Price And Quantity

Minimum Order Quantity 100 Kilograms
Price 250 INR/Kilograms

High menganese plate Product Specifications

Heat Resistance Yes
Steel Type Alloy Steel
Grade Hadfield Steel, 11-14% Mn
Surface Mill finish
Finish Type Rolled, Natural
Steel Product Type Plates
Coating Type Uncoated / As rolled
Dimension (L*W*H) As per requirement (Custom sizes available)
Size Customizable
Recyclable Yes
Material Composition % Mn 11-14%, C 1.00-1.40%, Si 0.30-1.20%, P max 0.070%, S max 0.040%, Fe balance
Tensile Strength 850 - 1100 MPa
Usage Wear resistant structural applications
Application Mining, Quarries, Earthmoving, Concrete, Construction Machinery, Heavy Equipment
Product Form Sheet / Plate
Product Name High Manganese Plate
Hardness 200 - 250 HB (work hardens up to 550 HB)
Weight Depends on dimension and thickness
Material Grade X120Mn12, A128 Gr B2, 1.3401
Thickness 6mm - 50mm
Color Silver Grey
Composition Manganese 11-14%, Carbon, Silicon, Phosphorus, Sulphur, Iron balance
Corrosion Resistant Good
Shape Flat Plate
Steel Standard ASTM A128, DIN 1.3401, EN X120Mn12

Elongation >35%
Packaging Type Standard export seaworthy packaging
Processing Can be cut by plasma, laser, or waterjet; machinable with special tools
Impact Resistance Excellent (work hardening property increases with impact)
Weldability Good with suitable electrodes
Machinability Hard to machine, recommended to use carbide tools
Temperature Range -40C to +400C
Density 7.8 g/cm3
Edge Type Mill edge / Sheared edge

High menganese plate Trade Information

Supply Ability 100000 Kilograms Per Month
Delivery Time 3 Days

Product Description

Discover the outstanding High Manganese Plate, engineered for wear resistance and exceptional durability in challenging environments. This scarce alloy, often utilized in mining, quarries, and heavy equipment manufacturing, boasts a masterful work hardening property-impact instantly enhances its resilience. Enhanced with enlightened alloy composition (11-14% Mn) and available in custom sizes, this plate meets high global standards like ASTM A128 and DIN 1.3401. Find reliability in its excellent weldability, machinability with carbide tools, and impressive mechanical traits, such as >35% elongation and tensile strength up to 1100 MPa.

Industrial Excellence in Plant Applications

High manganese plate is highly valued in plants focused on mining, concrete processing, earthmoving, and construction machinery manufacturing. Used by manufacturers and maintenance teams, its usage spans protective liners, hoppers, and equipment components. The outstanding impact resistance and work hardening capabilities ensure components can withstand rigorous wear environments, optimizing operational longevity and reliability. Its adaptability and customizable dimensions make it an essential presence in high-demand industrial settings seeking advanced materials.

Certifications, Samples, and Express Delivery

This exceptional product adheres to renowned certifications, including ASTM A128, DIN 1.3401, and EN X120Mn12, ensuring global quality compliance. Prospective buyers can request sample plates; these are available with a charge, detailed in our clear sample policy. Take advantage of express shipping options for quick sample delivery, allowing precise valuation and suitability assessments before bulk procurement. This customer-centric approach guarantees transparency, reliability, and satisfaction for every order, regardless of industry or scale.

FAQ's of High menganese plate:

Q: How does the work hardening property benefit users of high manganese plates?

A: The unique work hardening property allows the plate to become significantly harder when subjected to impact or abrasion, increasing its resistance to wear and extending the service life of equipment components in demanding environments.

Q: What processing methods can be utilised for cutting high manganese plates?

A: High manganese plates can be cut using plasma, laser, or waterjet machines. For machining, it is highly recommended to utilise carbide-tipped tools due to the alloy's tough, work-hardened surface during and after processing.

Q: Where is high manganese plate most commonly used?

A: This plate is widely used in industries such as mining, quarrying, concrete manufacturing, earthmoving operations, and in the production and maintenance of construction machinery and heavy-duty equipment, wherever superior wear resistance is required.

Q: What certifications are associated with high manganese plates?

A: Our high manganese plates are certified to international standards including ASTM A128, DIN 1.3401, and EN X120Mn12, confirming their quality and performance for critical structural applications.

Q: When should samples be requested and what is the process?

A: Samples are available for evaluation before confirming a large order. Customers can request samples which are shipped via express delivery for quick assessment; charges and terms are specified in the sample policy to ensure maximum clarity.
