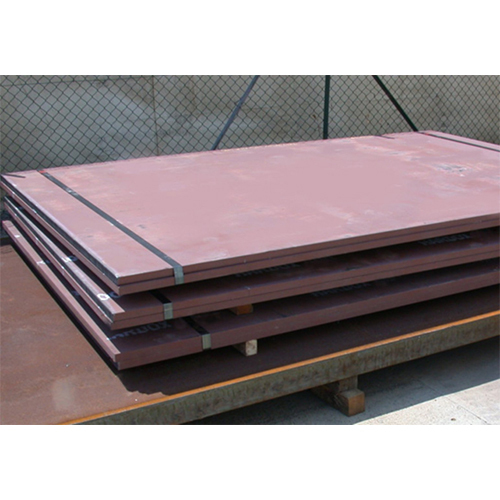

Wear resistance plate

Name: Wear resistance plate
Brand: SHIVA ALLOYS
Price: 250 INR
Availability: InStock

250 INR/Kilograms

Get a Price/Quote

Product Details:

Material Composition % C: 0.20-0.50%, Cr: 1.0-2.0%, Mn: 1.0-1.5%, Mo: 0.1-0.5% (typical)
Heat Resistance Yes
Hardness 360-600 HBW (Brinell Hardness)
Recyclable Yes
Coating Type Optional: anti-corrosion painted, primer, or customized
Product Form Plate
Corrosion Resistant Moderate (can be improved with coatings)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Wear resistance plate Price And Quantity

Minimum Order Quantity 100 Kilograms
Price 250 INR/Kilograms

Wear resistance plate Product Specifications

Hardness 360-600 HBW (Brinell Hardness)
Shape Rectangular
Heat Resistance Yes
Grade AR400, AR500 or custom grades (as per request)
Material Composition % C: 0.20-0.50%, Cr: 1.0-2.0%, Mn: 1.0-1.5%, Mo: 0.1-0.5% (typical)
Finish Type Smooth, shot blasted, or as specified
Coating Type Optional: anti-corrosion painted, primer, or customized
Product Form Plate
Steel Standard ASTM, EN, JIS standards as required
Corrosion Resistant Moderate (can be improved with coatings)
Weight Varies depending on dimension and thickness
Recyclable Yes
Material Grade Wear resistant steel grades (e.g., Hardox, RAEX, Quard, branded grades available)
Composition High Carbon Steel with Chromium, Manganese, Molybdenum or as per grade
Color Metallic grey or black (as supplied)
Steel Product Type Plate
Size Standard and customized sizes available
Surface Mill finished, shot blasted, or as specified
Application Mining, construction, earthmoving, material handling, heavy machinery
Steel Type Alloy Steel
Dimension (L*W*H) As per requirement (customizable sizes available)
Product Name Wear Resistance Plate
Thickness 5mm to 100mm (custom thickness available)
Tensile Strength 1250 MPa - 2000 MPa
Usage Liner plates, chute liners, crushers, hoppers, buckets, dump truck beds, wear parts

Impact Resistance Excellent, suitable for high-impact applications
Bendability Good bend properties for fabrication use
Machinability Can be cut, drilled, and welded with appropriate techniques
Minimum Order Quantity As per supplier terms
Edge Condition As rolled, flame cut, or as requested
Stock Availability Ready stock or made to order
Delivery Condition Quenched and tempered, rolled, or as specified by customer
Service Life Extended wear life under severe abrasion conditions

Wear resistance plate Trade Information

Supply Ability 100000 Kilograms Per Month
Delivery Time 3 Days

Product Description

Unlock premier durability and prodigious cost-efficiency with our Wear Resistance Plate-an absolute must-have for formidable industrial applications. Designed for instant savings in maintenance downtime, this plate boasts excellent impact resistance and is tailored for high-abrasion mining, earthmoving, and material handling environments. With superb machinability, you can cut, drill, or weld as needed, and the customizable shape and thickness ensure a precise fit. Delivery conditions include quenched and tempered options, while extended service life under severe conditions guarantees exceptional market value and reliability for every project.

Versatile Application and Machine Compatibility

Wear Resistance Plates excel in specific and general use-from mining linings to construction buckets and chute liners. Designed for heavy-duty impact, they are suitable for crushers, dump truck beds, and material handling equipment. The application process is straightforward: plates are fabricated and installed as liners or components using conventional techniques. Engineered to integrate with a wide range of machines, these plates deliver consistent performance, high bendability, and reduced wear, making them indispensable in rugged operation zones.

Packaging, Supply, and Market Value Details

Each Wear Resistance Plate is securely packaged for safe transportation, minimizing risk of surface damage. With substantial supply ability and ready-to-ship stock or made-to-order options, lead times remain competitive to accommodate urgent market demands. Samples are available on request to validate quality before purchase. The asking price reflects premium composition and performance advantages, ensuring strong market value while supporting cost-effective bulk procurement for manufacturers, traders, and end-users nationwide.

FAQ's of Wear resistance plate:

Q: How do I determine the correct thickness and grade of wear resistance plate for my application?

A: You should consider the level of impact and abrasion the plate will endure, as well as the equipment type. Consultation with our technical team helps match the application (such as mining, construction, or material handling) to the appropriate plate thickness (5-100 mm) and grade (AR400, AR500, or customized) for optimal performance.

Q: What is the process for cutting, drilling, and welding these plates?

A: Wear Resistance Plates can be cut, drilled, and welded using suitable industrial techniques. High-performance tools and specific procedures are recommended to maintain plate integrity and hardness during fabrication. Our experts can guide you through the appropriate method for your needs.

Q: Where can these plates be used effectively?

A: These plates are highly effective in environments with severe abrasion and impact, such as liners for mining trucks, construction equipment, crushers, hoppers, and earthmoving machinery. Their versatility makes them suitable for both fixed plant and mobile equipment.

Q: What benefits do wear resistance plates offer over conventional steel plates?

A: Wear Resistance Plates provide superior impact and abrasion resistance, extended service life, reduced maintenance intervals, and significant cost savings. Their formidable mechanical properties translate to lower downtime and higher efficiency in heavy-duty operations.

Q: When can I expect delivery, and is there a minimum order quantity?

A: Delivery times depend on stock availability and customization needs-ready stock ships promptly, while bespoke orders follow agreed timelines. Minimum order quantities are governed by supplier terms, but flexibility is offered based on project requirements.

Q: How is the market value of the wear resistance plate established?

A: The market value is determined by the plate's grade, thickness, finish, and custom features. High-quality material composition and certified standards (ASTM, EN, JIS) contribute to a fair asking price that reflects both durability and performance.
